Product Dimensions 24"h x 60"w x 32"d

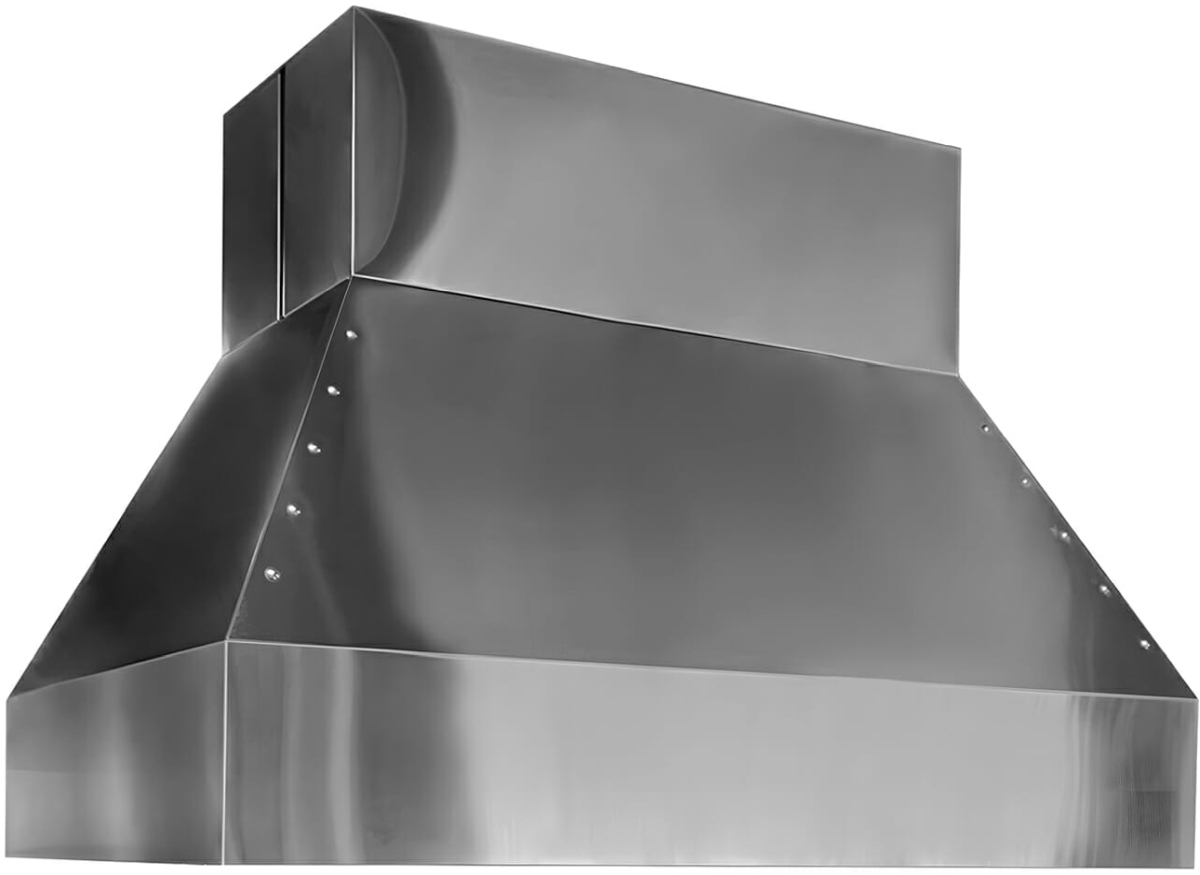

Pyramid BBQ hoods are 16" deep at top, 32" deep at bottom. Design of the stainless steel commercial baffle filters adds a professional image. Telescopic duct cover (2 piece) provided for adjustment up to 10' ceilings. Generously proportioned 32” depth of hood provides an exceptional capture area.Read More
1200 CFM internal blower in 48" model
2300 CFM internal blower in 60" model
Optional in-line blower delivers 1266 CFM
Full grill coverage of 32" front to back
24" tall for increased capture area
Double bank of S/S baffle filters for better capture
3-speed blower control (internal blower models)
Variable blower control (in-line/remote models)
Dimmable 50-watt halogen lights
Slip-resistant control knobs
Pyramid hood shape with duct cover to 10' ceiling included
Duct cover telescopes for perfect height over grill
Dishwasher-safe commercial-style baffle filters with 2 easy-grip handles
Detergent inlet holes and grease exit holes in baffle filters for superior dishwasher cleaning
Commercial grade stainless steel (#304 grade) and galvanized steel construction
General Specs | |
| Product Weight (lbs.) | 215 |
| Color | Stainless Steel |
| Width (in.) | 60 |
| Depth (in.) | 32 |
| Height (in.) | 24 |
| Collection | P7200 Series |
| Outdoor Approved | Yes |
| Manufacturer Warranty | 3 Year Parts & Labor |
| Appliance Fit Width (in.) | 60 |
| Color Finish Name | Stainless Steel |
| Maximum CFM | 1266 |
| Vent Location | Top |
| Grease Filter Type | Baffle |
| Material | Metal |
| Ventilation Type | Ducted |
| Duct Size (in.) | 2 x 10" Round |
| Range Hood Type | Island |
| Range Hood Features | Light, Removable Grease Filter, Approved For Outdoors |
