Product Dimensions 24"h x 48"w x 32"d
Available in 48” width. Pyramid BBQ hoods are 16" deep at top, 32" deep at bottom. Design of the stainless steel commercial baffle filters adds a professional image. Telescopic duct cover (2 piece) provided for adjustment up to 10' ceilings. Generously proportioned 32” depth of hood provides an exceptional capture area.Read More
Recessed controls and LED lights. Buttons and light glare hidden from the front. Two LED lights brighten cooking area (three on 48”,60”, and four on 72” model).
Commercial grade stainless steel (#304 grade) and galvanized steel construction. CFM and sound tested by Energy Systems Laboratory at Texas A&M University.
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration. 3-speed motor control reduces blower and air movement sound.

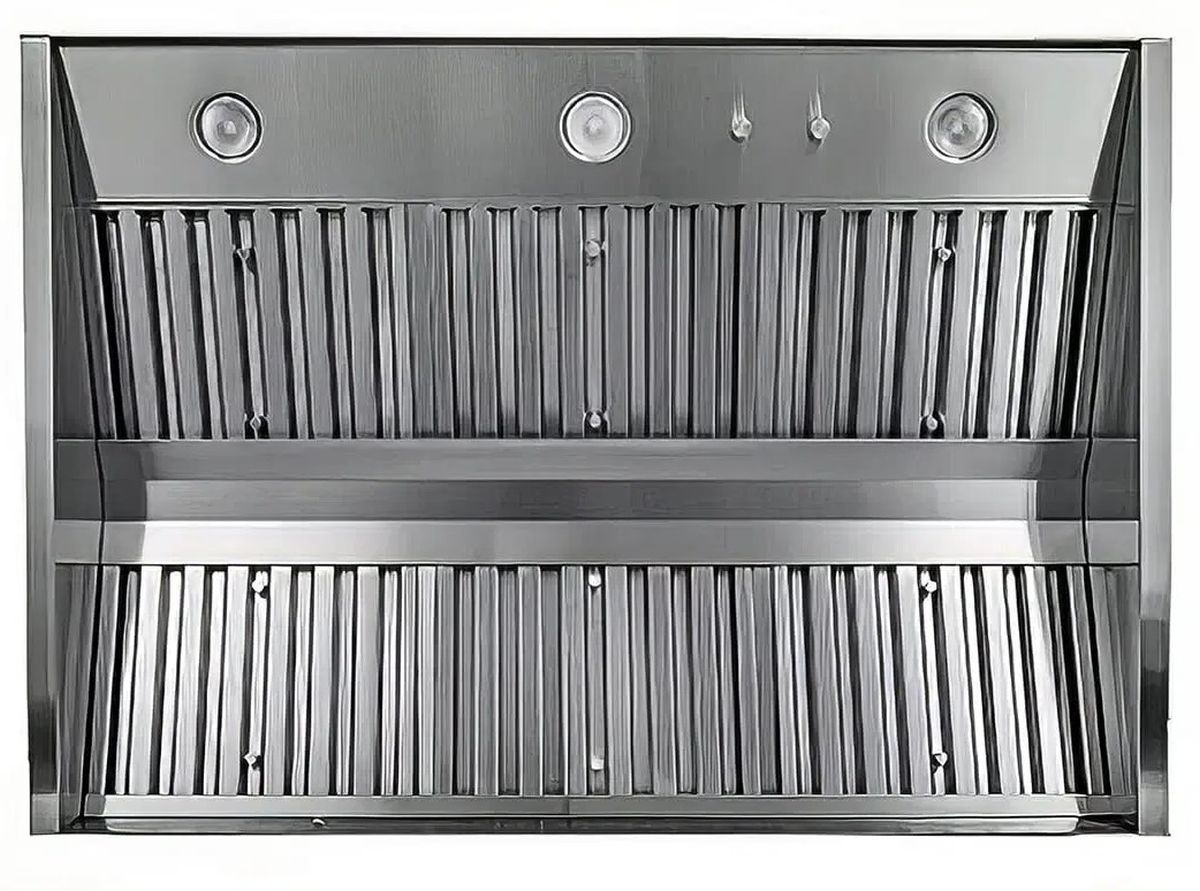

Double bank of baffle filters allows for the largest active capture area in outdoor hoods. Generously proportioned 32” depth of hood bottom, 15′′ depth at top, 24′′ high, provides an exceptional capture area.
Cool touch knarled knobs for easy control.
All 24” bodied hoods easily convert from vertical discharge to horizontal at job site
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Island |
| Maximum CFM | 1200 |
| Grease Filter Type | Baffle |
| Duct Size (in.) | 10 |
| Fan Speed Options | 3 |
| Sones Rating | 1.5 - 7 |
| Range Hood Features | Light, Removable Grease Filter, Dishwasher Safe Filter |
| Outdoor Approved | Yes |
| Appliance Fit Width (in.) | 48 |
| Width (in.) | 48 |
| Depth (in.) | 32 |
| Height (in.) | 24 |
| Product Weight (lbs.) | 175 |
| Collection | P7200 Series |
| Series | P7200 Series |
| Manufacturer Warranty | 3 Year Parts & Labor |
| ADA Compliant | No |
| Voltage | 120 |
| Frequency | 60 |
| Amp | 6.3 |
Specifications | |
| Models | 48" & 60" Width |
| Hood Style | Pyramid: 16″ deep at top, 32″ deep at bottom Generously proportioned 32” depth of hood provides an exceptional capture area |
| CFM | Powerful internal blowers deliver 1200 CFM (on 48") and 2300 CFM (on 60") |
| Material | Heavy gauge commercial stainless steel (#304 grade with #4 brush finish) Dimmable 50 watt halogen lights |
| Filters | Four 12” by 14” baffle filters for enhanced performance Design of the stainless steel commercial baffle filters adds a professional image |
| Duct Cover Options | Telescopic duct cover (2 piece) provided for adjustment up to 10′ ceilings |
