Product Dimensions 4"h x 58.38"w x 18"d

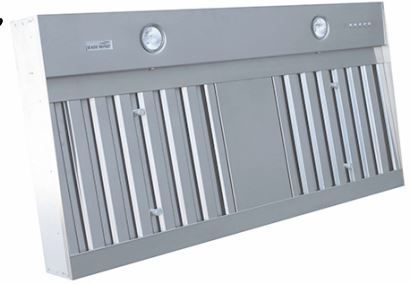

Trade-Wind® Designer Series 58" Built In Range Hood Liner-Stainless Steel with dishwasher safe baffle filters and halogen lightsRead More
Easy Cleaning
Dishwasher safe commercial baffle filters
Leading edge design is easy to clean. Eliminates grease traps.
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration noise(1250, 660 & 390 CFM models)
Variable or 3-speed motor control (varies by model) reduces blower and air movement sound
Large, baffle filters reduce air movement sound
Sound absorbing duct silencers, Neoprene® lined sound absorbing fast clamps & dampers available
Internal motor models deliver 1250 CFM, 660 CFM or 390 CFM (390 CFM is Code Compliant)
Optional in-line blowers deliver 1266 CFM or 836 CFM
Commercial grade stainless steel (#304, 24-gauge) and galvanized steel construction
Oversized baffle filters improve ventilation performance
Two dimmable 50-watt halogen lights brighten cooking area; three on 448, 454 & 460 models
Performance tested by Energy Systems Laboratory at Texas A&M University
Style complements ALL custom and manufactured wood hood designs
Electronic touch controls with blue LED lighting (3-speed internal motor models).
Metallic control knobs on all variable speed in-line blower models.
Simplicity of design preferred by home owners
Remote blower models pre-wired for use with most in-line or exterior blowers
Installs easily in standard size or custom built wood range hoods
General Specs | |
| Width (in.) | 58.38 |
| Height (in.) | 4 |
| Duct Size (in.) | 10 |
| Depth (in.) | 18 |
| Color | Stainless Steel |
| Color Finish Name | Stainless Steel |
| Appliance Fit Width (in.) | 59 |
Display | |
| Controls: | Mechanical |
General Features | |
| Filter Type: | Baffle |
| Cleanability: | Dishwasher Safe |
Other | |
| Number of Lights: | 2 |
| Air Mover Type(s): | Squirrel Cage |
| Air Mover(s) Speed: | Variable |
| Number of Air Movers: | 3 |
