Product Dimensions 54"h x 42"w x 20"d

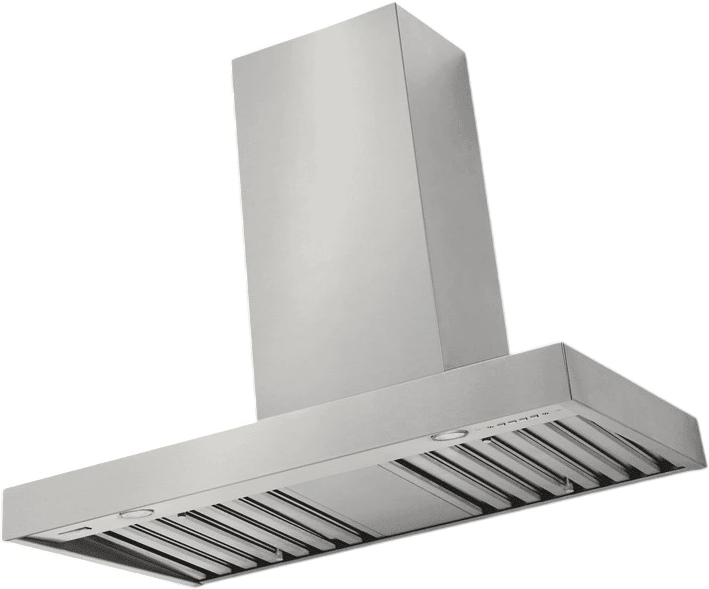

Trade-Wind® 3000 Slim Line Series 42-inch stainless steel wall mount range hood provides strong ventilation performance with quiet operation and modern appearance ideal for larger kitchens needing efficient smoke grease and odor removal while offering durability easy maintenance and reliable everyday cooking support.Read More
Recessed controls and LED lights. Buttons and light glare hidden from the front. Two LED lights brighten cooking area (three on 48” model).
Commercial grade stainless steel (#304 grade) and galvanized steel construction. CFM and sound tested by Energy Systems Laboratory at Texas A&M University.
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration. 3-speed motor control reduces blower and air movement sound. Sone rating of 1.5-7.
Two large, oversized 14" x 15" stainless steel baffle filters reduce air movement sound and improve ventilation performance (three on the 48" model).
Electronic touch controls with blue LED back lighting. Plus NEW Remote Control with optional 5 minute shut off timer.
Optional ductless conversion kit (MODEL #: 5BL-33-300-DCK1) on 390 CFM Models only.
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ducted |
| Ventilation Direction | Horizontal |
| Vent Location | Top |
| Grease Filter Type | Baffle |
| Duct Size (in.) | 7 |
| Bulb Type | LED |
| Sones Rating | 1.5 - 7 |
| Maximum CFM | 390 |
| Range Hood Features | Light, Remote Control, Automatic Shut Off, Dishwasher Safe Filter |
| Smart Compatible | Yes |
| Fan Speed Options | 3 |
| Appliance Fit Width (in.) | 42 |
| Width (in.) | 42 |
| Height (in.) | 54 |
| Depth (in.) | 20 |
| Collection | 3000 Slim Line Series |
| Series | 3000 Slim Line Series |
| Manufacturer Warranty | 3 Year Parts & Labor |
Specifications | |
| Hood Style | Low-Profile |
| CFM | Internal motor models deliver 390 CFM (code compliant) |
| Material | Commercial grade stainless steel (#304 with #4 brush finish) |
| Filters | Two oversized 14” x 15” stainless steel baffle filters improve performance (3 on the 48" model). Dishwasher safe with 2 easy-grip handles. |
| Duct Cover Options | Two-piece, telescopic duct cover to 10′ ceiling included. Optional telescopic duct cover to 12′ ceiling sold separately. |
| Installation | Includes simple wall mount brackets. Wiring diagram label for simple electrical connection. Under cabinet mount option. |
