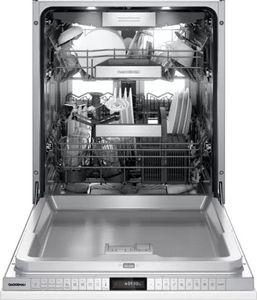

Gaggenau 400 Series 24" Panel Ready Built In Dishwasher


    Model #:

    DF481700F

    At a Glance

    Product Dimensions 36.5"h x 23.56"w x 21.63"d

    *CUSTOM PANEL & HANDLE SOLD SEPARATELY* - The life between work increasingly revolves around cuisine. Preparing, enjoying, discussing it, all occurs increasingly in one room. And if the kitchen is the heart of the home, then Gaggenau is the soul of the kitchen.Read More

    Request a Quote

    What We Offer

    Protect Your Purchase
    None Selected
    Services
    None Selected
    You Might Also Need
    None Selected

    Get to know this product.

    Product Overview

    Product Overview

    Optimal protection for sensitive glassware by low temperature drying with zeolite, optimized basket design and intelligent water softening.

    8 programs with aqua sensor and 6 options, such as Power for cleaning and drying dishes in 57 minutes and Intensive for particularly thorough cleaning in the lower basket.

    Flexible basket system with smooth running rails on all levels and cushioned closing of the upper and lower baskets.

    Perfectly illuminated interior.

    Push-to-open function for perfect integration into custom cabinet fronts.

    Operation

    TFT display indicating remaining or end time, refill for salt and rinsing agent, inflow of water.

    Touch key operation.

    Flexible cycle time reduction, even during an active cycle.

    Personalization function for storing individual combinations of programs.

    Temporary noise reduction (only available with active Home Connect functionality).

    Information key with use indicators.

    Sanitized indicator in the control panel.

    Time delay up to 24 hours.

    Visual and acoustic end of program indicator.

    Lateral Info-Light.

    Technical Features

    Perfectly illuminated interior. Glass protection with zeolite.

    Aqua sensor. Load sensor. Automatic detergent function.

    Flow-Through Water Heater™

    Triple filter system. Soft lock. Aqua stop.

    Home network integration for digital services (Home Connect) wireless via WiFi.

    Programs

    8 programs: Auto 150-160 °F. Auto 127-140 °F. Auto 113-122 °F. Eco 113-136 °F. Wash and Dry 122°F. Quick Wash 113 °F (30 min). Glass Care 122 °F. Personalization function (default setting: Pre-rinse).

    6 options: Remote Start. Intensive. Power. Sanitize. Extra Dry with zeolite.

    Machine Care

    Additional Features

    Flexible rack system with smooth running rails on all levels and soft-closing system of the upper and lower rack.

    3rd rack for cutlery.

    Upper basket: Over extension. Optional extra cleaning area by activating additional spray nozzles. Rackmatic with 3 levels, adjustable in height up to 2" (5 cm). 6 folding spines. 4 folding racks for optimal protection of glass.

    Lower basket: 8 folding spines. 2 folding racks for optimal protection of glass. Dividable glass support.

    Cutlery basket.

    Holder for long-stemmed glasses.

    Maximum glass loading capacity 23 wine glasses.

    Useful Documents
    Specifications

    General Specs

    ColorCustom
    Color/Finish NamePanel Ready
    ENERGY STAR CertifiedYes
    Cutlery HolderYes
    Delay Wash (Up to hours)24
    Depth (in.)21.63
    Height (in.)36.5
    Noise level (dB)42
    Tub MaterialStainless Steel
    Width (in.)23.56
    Appliance Fit Width (in.)24
    Custom Panel ReadyYes
    Sanitize OptionYes
    Collection400 Series
    Smart CompatibleYes
    Color Finish NamePanel Ready
    Number Of Place Settings13
    ADA CompliantYes
    Dishwasher TypeBuilt-In
    Control Panel TypeTop
    Voltage120
    Frequency60
    Amp12
    Sound Rating RangeQuietest
    Dishwasher FeaturesStemware Holder, Cutlery Holder, Door/Child Lock, Sensor Wash, App Capable, Wi-Fi Capable, Custom Panel Ready
    Third RackYes

    WarningProposition 65 Warning for California Residents
