Product Dimensions 5"h x 30"w x 18.63"d

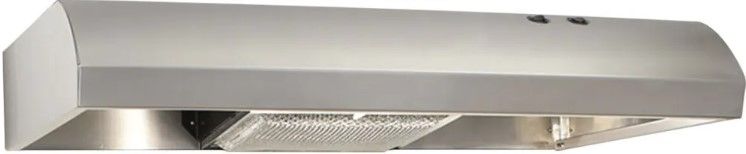

Fiesco has a slender 5" height and soft curves, designed to modernize and perfectly fit kitchens where space is premium. A 2-speed, 190 CFM internal blower provides sufficient ventilating power for most kitchens. Color-coordinated rocker switches control blower speeds and 75-watt incandescent lighting.Read More
READY FOR DELIVERY
The anodized aluminum mesh grease filter is dishwasher-safe and simple to remove and re-install. Fiesco is designed for standard ducted or recirculating installations.
Provides sufficient ventilating power for most kitchens.
For simple fan speed and light operation.
Illuminates the cooking space and surrounding surface.
1 x 75-watt incandescent lamp, 1 intensity (bulb not included).
Featuring triple-layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining, and provides durability to repeated cleanings in the dishwasher.
*Range hood only, all other products sold separately. Images may not reflect actual size. Color in images may differ in person; see retailer for the actual finish.
General Specs | |
| Width (in.) | 30 |
| Height (in.) | 5 |
| Duct Size (in.) | 7" |
| Depth (in.) | 18.63 |
| Collection | Fiesco |
| Color | Stainless Steel |
| Series | Fusaro |
| Manufacturer Warranty | 2 Years |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Under Cabinet |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Smart Compatible | No |
| Maximum CFM | 190 |
| Grease Filter Type | Aluminum Mesh |
| Bulb Type | Incandescent |
| Sones Rating | 4.1 |
| Fan Speed Options | 2 |
| Voltage | 120 |
| Frequency | 60 |
| Wattage | 110 |
| Range Hood Features | Light, Removable Grease Filter |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
Additional Informations | |
| Style: | Standard Hood |
| Venting Type: | Convertible |
| Blower Type: | Internal |
| Lights: | Halogen |
| Delay Shut-Off: | No |
| Illumination: | 1.75 w Incandescent lamp, 1 intensity (bulb not Included) |
| Filters: | Dishwasher-Safe, Anodized Aluminum Mesh Filter | Includes (1) combination of aluminum mesh & carbon filter for recirculating installations |
| Duct Transition: | 3 1/4" x 10" (Top or Rear) or 7" round (sold separately) |
| Installation Type: | Ducted Out or Recirculating Installation |
| Electrical: | 120 V - 60 Hz, 110 W |
| Warranty: | Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts & In-Home Labor by registering on elica.com. |
Kits | |
| Duct Transition: | KIT02722 (7" round) |
| Back Draft Damper: | KIT02723 (7" round) |
| No Return Valve: | KIT02724 (10" x 3 1/4" rectangular) |
