Product Dimensions 4.75"h x 30"w x 20"d

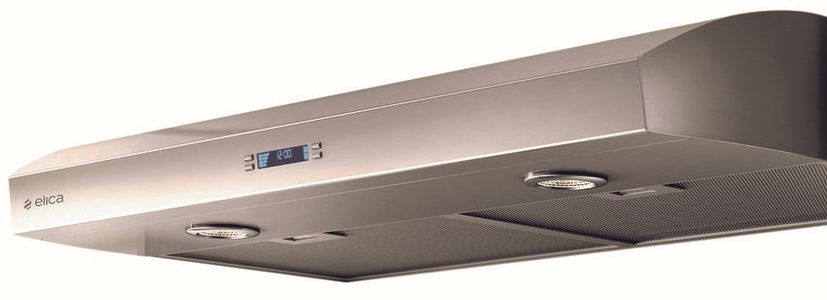

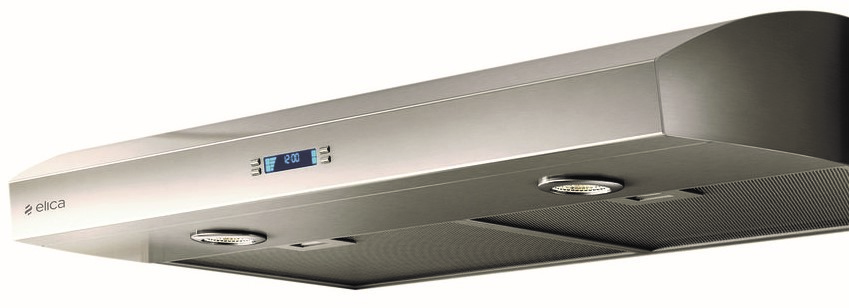

Its upgraded 4-speed, 400 CFM internal blower provides sufficient ventilating power for most kitchens. Bella also offers the luxury and convenience of LED lighting with 2 intensities, dishwasher-safe anodized aluminum mesh filters and multi-function LCD controls.Read More
Its upgraded 4-speed, 400 CFM internal blower provides sufficient ventilating power for most kitchens. Bella also offers the luxury and convenience of LED lighting with 2 intensities, dishwasher-safe anodized aluminum mesh filters and multi-function LCD controls. Available in 30" or 36" width, Bella is designed for standard ducted installation and can also be used as a recirculating system using the kit available as an accessory.
With a compact 4 3/4" height, Bella is an ideal choice where under-cabinet space is limited.
3x layer mesh filter
CFM reduction
Heat guard
LED light
General Specs | |
| Width (in.) | 30 |
| Height (in.) | 4.75 |
| Duct Size (in.) | 3 1/4” x 10” with Back Draft Damper (top or rear), or 7” Round (top) |
| Depth (in.) | 20 |
| Collection | Bella |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Range Hood Type | Under Cabinet |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 430 |
| Grease Filter Type | Aluminum Mesh |
| Bulb Type | LED |
| Sones Rating | 1.4 - 7.1 |
| Fan Speed Options | 4 |
| Width (cm) | 76.2 |
| Height (cm.) | 12.07 |
| Depth (cm.) | 50.8 |
| Voltage | 120 |
| Amp | 3.6 |
| Frequency | 60 |
| Wattage | 445 |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
